The short answer: To choose a solar charge controller, divide your total solar array wattage by your battery bank voltage to find the required amperage, then add a 25% safety margin. For a 400W array and a 12V battery, you need at least a 40A controller. Choose an MPPT controller for large arrays or mismatched voltages, and a PWM controller for small, budget-friendly 12V systems.
The charge controller is the brain of your off-grid solar system. It regulates the voltage and current coming from the solar panels to safely charge your batteries without overcharging them.

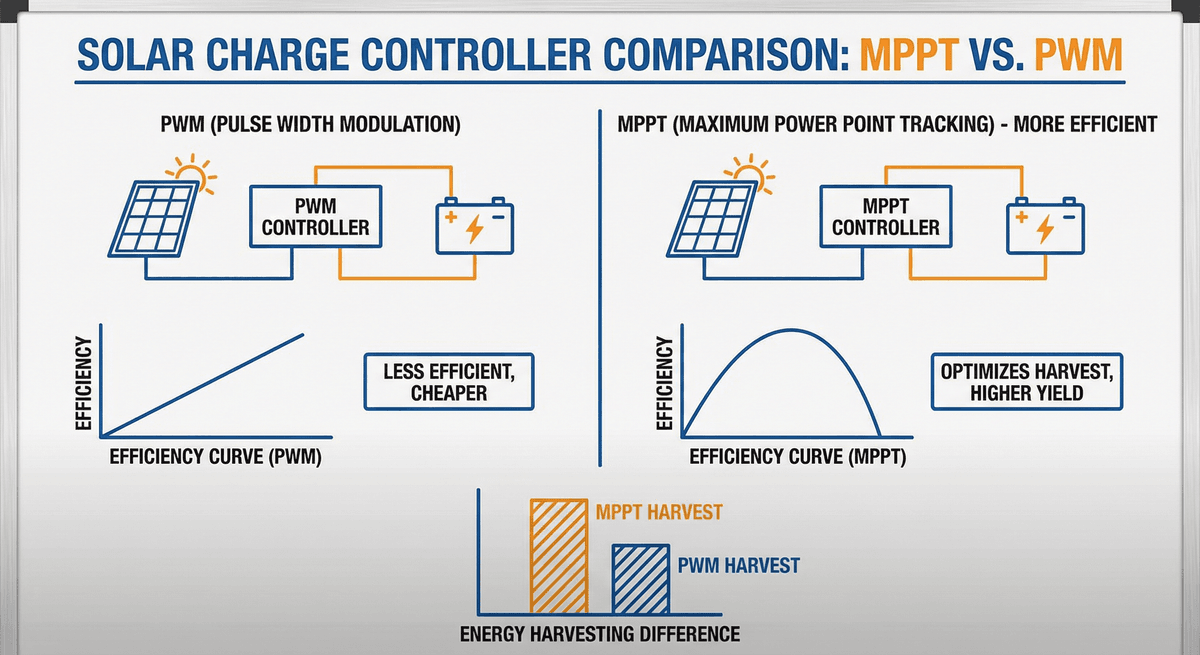

MPPT vs. PWM: Which is Right for You?
There are two main types of charge controllers: Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT).
- PWM (Pulse Width Modulation): These are simpler, cheaper, and act like a smart switch. They pull the solar panel voltage down to match the battery voltage. They are best for small systems (under 200W) where the panel voltage closely matches the battery voltage (e.g., a "12V" panel charging a 12V battery).
- MPPT (Maximum Power Point Tracking): These are more expensive but highly efficient (up to 30% more power). They convert excess voltage from the panels into additional charging current. They are essential if your panel voltage is much higher than your battery voltage, or for systems over 400W.
How to Size Your Charge Controller
Sizing a charge controller requires matching it to both your solar array and your battery bank.
The Sizing Formula: Controller Amps = (Total Solar Wattage / Battery Voltage) × 1.25 Safety Factor
Illustrative Worked Example
Let's size an MPPT charge controller for a mid-sized off-grid cabin.
- Solar Array: Three 200W panels wired in parallel (Total: 600W)
- Battery Bank: 12V LiFePO4 battery
Calculation:
- Base Amperage = 600W / 12V = 50 Amps
- Add Safety Margin = 50 Amps × 1.25 = 62.5 Amps
- Result: You should purchase a charge controller rated for at least 65A or 70A (since 62.5A is not a standard size).
(Note: This is an illustrative example. Always check the maximum input voltage (Voc) rating of the controller to ensure your panels do not exceed it, especially in cold weather.)
Crucial Considerations Often Missed
When selecting a controller, many buyers focus only on the amperage rating. However, several other factors dictate system reliability:
- Maximum Input Voltage (Voc Limit): Every controller has a strict maximum voltage limit (e.g., 100V or 150V). If you wire panels in series, their voltages add up. In freezing temperatures, panel voltage increases. If the cold-weather voltage exceeds the controller's limit, it will fry the unit. Always calculate cold-weather Voc.
- Battery Chemistry Compatibility: Not all controllers support Lithium Iron Phosphate (LiFePO4) batteries out of the box. Ensure the controller has a specific Lithium profile or allows custom voltage setpoints for Bulk, Absorption, and Float stages.
- Parasitic Draw: Charge controllers consume a small amount of power just to stay on. In tiny systems (like a gate opener), a large MPPT controller's standby draw might drain the battery faster than a small PWM controller would.
Practical Checklist for Buying
Before clicking purchase, verify these details:
- Amperage Rating: Does it handle your total wattage divided by battery voltage, plus 25%?
- Voltage Limit: Is the controller's max input voltage higher than your array's total Voc (adjusted for record cold temperatures)?
- Battery Type: Can it be programmed for your specific battery chemistry (Lead-Acid, AGM, Gel, or Lithium)?
- Expansion: If you plan to add more panels next year, buy a larger controller now so you don't have to replace it later.
Frequently Asked Questions
Can I use a 24V solar panel to charge a 12V battery?
Yes, but you must use an MPPT charge controller. An MPPT controller will efficiently step down the 24V to 12V while increasing the charging current. If you use a PWM controller, you will lose roughly half of your panel's potential power.
What happens if my solar panels produce more amps than the controller is rated for?
Most high-quality MPPT controllers will simply "clip" the excess power and only output their maximum rated amperage. However, exceeding the maximum voltage (Voc) will permanently damage the controller.
Do I need a charge controller if I only have a 20W panel?
Generally, if a solar panel outputs more than 1/100th of the battery's amp-hour capacity (e.g., a 1A panel on a 100Ah battery), you need a charge controller to prevent overcharging. For a 20W panel on a small battery, a cheap PWM controller is highly recommended.
Can I run two charge controllers on the same battery bank?
Yes. If you are expanding your solar array and your current controller is maxed out, you can wire a second array to a second charge controller, and connect both controllers directly to the same battery bank. They will work together to charge the batteries.
