How to Wire 12V Batteries in Parallel

To wire 12V batteries in parallel, you connect the positive terminal of the first battery to the positive terminal of the second battery, and the negative terminal of the first battery to the negative terminal of the second battery. Wiring batteries in parallel increases the total amp-hour (Ah) capacity of the battery bank while keeping the overall system voltage at 12V.

For example, if you wire two 12V 100Ah batteries in parallel, the resulting battery bank will still operate at 12V, but it will have a total capacity of 200Ah.

Wiring batteries in parallel is the standard method for expanding the runtime of 12V systems in RVs, camper vans, boats, and small off-grid solar setups. However, if done incorrectly, parallel wiring can cause the batteries to become unbalanced, leading to rapid degradation, overheating, and premature failure.

This guide covers the exact steps, safety protocols, and wiring techniques required to build a balanced parallel battery bank.

---

1. The Basics of Parallel Wiring

In a parallel circuit, voltage remains constant, but amperage (capacity) adds up.

• Parallel Connection: Positive to Positive (+ to +) AND Negative to Negative (- to -).
• Result: Voltage stays the same. Amp-hours (Ah) multiply.

Example: If you have three 12V 100Ah batteries and wire them in parallel:

• Voltage: 12V
• Capacity: 100Ah + 100Ah + 100Ah = 300Ah total.

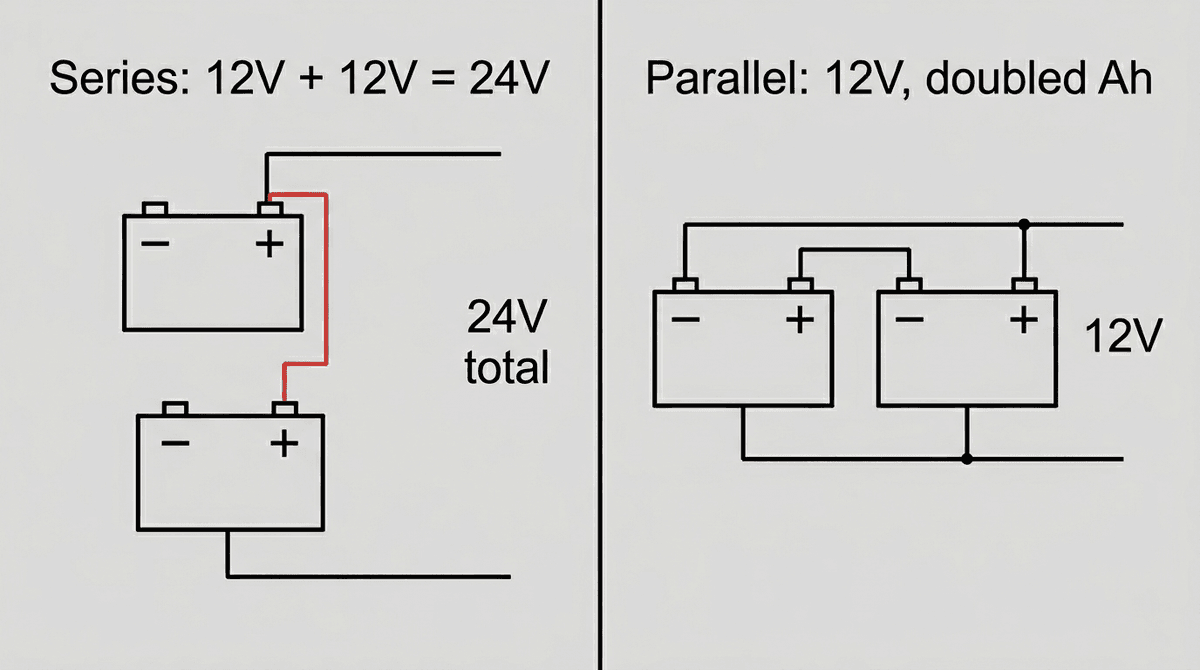

This is the opposite of series wiring (Positive to Negative), which adds the voltage together (12V + 12V = 24V) but keeps the amp-hour capacity the same (100Ah).

2. Step-by-Step: How to Wire Two 12V Batteries in Parallel

Safety First: Before starting, ensure all loads (inverters, lights) and charging sources (solar panels, shore power) are completely disconnected. Wear safety glasses and remove all metal jewelry.

Step 1: Position the Batteries Place the batteries side-by-side. Ensure they are securely mounted so they cannot shift and cause the cables to rub or short out.

Step 2: Connect the Positive Terminals Take a heavy-duty battery cable (e.g., 2/0 AWG or 4/0 AWG) and connect one end to the Positive (+) terminal of Battery A. Connect the other end of the same cable to the Positive (+) terminal of Battery B.

Step 3: Connect the Negative Terminals Take a second heavy-duty battery cable of the exact same length and thickness as the positive cable. Connect one end to the Negative (-) terminal of Battery A. Connect the other end to the Negative (-) terminal of Battery B.

Step 4: Connect Your System Loads (The Cross-Corner Method) This is the most critical step for ensuring your batteries stay balanced.

• Connect your main Positive system cable (going to your inverter or fuse block) to the Positive (+) terminal of Battery A.
• Connect your main Negative system cable (going to your shunt or ground busbar) to the Negative (-) terminal of Battery B.

By pulling power from opposite ends of the battery bank, you force the electricity to travel an equal distance through both batteries. If you connect both main system cables to Battery A, Battery A will do most of the work, age faster, and die prematurely.

3. Rules for Parallel Battery Banks

To ensure safety and longevity, you must follow these strict rules when wiring batteries in parallel:

• Rule 1: Use Identical Batteries. Never mix batteries of different voltages, different amp-hour capacities, different chemistries (e.g., Lithium and AGM), or different ages. If you wire a new battery in parallel with an old battery, the old battery will drag the new battery down to its degraded performance level.
• Rule 2: Fully Charge Before Connecting. Before wiring batteries together, charge each battery individually to 100% using a standalone 12V charger. If you connect a fully charged battery to a dead battery in parallel, a massive, uncontrolled surge of current will rush from the full battery into the empty one, potentially melting the terminals or causing a fire.
• Rule 3: Use Identical Jumper Cables. The cables connecting Battery A to Battery B must be the exact same gauge (thickness) and the exact same length. If the positive jumper is 12 inches long, the negative jumper must be exactly 12 inches long. This ensures electrical resistance is identical across the bank.

4. Beyond the Basics: What Typical Wiring Guides Miss

Many basic diagrams show how to wire two batteries, but fail to explain the hidden dangers of larger parallel banks:

• The Limit on Parallel Strings: You should generally avoid wiring more than three or four lead-acid batteries in parallel. With every battery you add, the wiring resistance becomes more complex, making it nearly impossible to keep the middle batteries perfectly balanced with the outer batteries. If you need massive capacity, it is much better to switch to a 24V or 48V system using series wiring, rather than wiring eight 12V batteries in parallel.
• Lithium BMS Limitations: If you are wiring Lithium (LiFePO4) batteries in parallel, you must check the manufacturer's spec sheet. Some cheaper lithium batteries have a Battery Management System (BMS) that cannot handle the cross-currents of parallel wiring and will permanently lock out if connected to another battery. Always verify the battery is rated for parallel expansion.
• Fusing the Bank: While you must have a main catastrophic fuse on the positive cable going to your inverter, best practice for large parallel banks (especially lithium) is to fuse each individual battery at its positive terminal. If one battery internally shorts out, the other batteries in the parallel bank will dump thousands of amps into the dead battery, causing a catastrophic thermal event. Individual terminal fuses prevent this.

5. Illustrative Worked Example: Expanding a Camper Van Setup

Let's look at a realistic scenario of wiring a parallel bank for a camper van.

The Goal: The owner has a 12V 100Ah AGM battery, but it doesn't hold enough power to run their 12V fridge overnight. They want to upgrade to a 12V 300Ah system.

The Wrong Way: The owner buys two new 12V 100Ah AGM batteries and wires them in parallel with their existing 2-year-old battery. They connect the inverter to the positive and negative terminals of the first battery.

• The Result: The old battery has higher internal resistance and drags down the voltage of the two new batteries. Because the inverter is connected to only the first battery, that battery works the hardest. Within 6 months, the entire 300Ah bank is permanently degraded and won't hold a charge.

The Right Way (Illustrative):

1. The owner recycles the old battery and purchases three brand-new, identical 12V 100Ah AGM batteries from the same manufacturing batch.
2. They charge all three batteries individually to 13.8V.
3. They cut four identical 10-inch lengths of 2/0 AWG copper cable and crimp heavy-duty lugs onto the ends.
4. They wire the three positive terminals together, and the three negative terminals together.
5. They connect the main Positive inverter cable to Battery #1.
6. They connect the main Negative inverter cable to Battery #3.

• The Result: The system operates at a perfect 12V with 300Ah of capacity. The cross-corner wiring ensures all three batteries share the load equally, maximizing their 5-year lifespan.

6. Frequently Asked Questions (FAQ)

Can I wire a 12V battery and a 6V battery in parallel?

Absolutely not. Wiring batteries of different voltages in parallel will cause an immediate and catastrophic short circuit. The 12V battery will attempt to dump massive amounts of current into the 6V battery to equalize the voltage, resulting in melted wires, boiling battery acid, and a high risk of explosion. Parallel batteries must always be the exact same voltage.

Does wiring batteries in parallel increase the charging time?

Yes. Because parallel wiring increases the total amp-hour capacity of the bank, it will take proportionally longer to charge. If it takes your solar panels 4 hours to charge one 100Ah battery, it will take 8 hours to charge two 100Ah batteries wired in parallel. You may need to upgrade your solar array or charge controller to handle the larger battery bank.

What size wire should I use to connect parallel batteries?

The jumper cables connecting the batteries together must be sized to handle the absolute maximum amperage your system can draw (usually dictated by your inverter size). For a 12V system with a 2000W inverter, the system can pull over 170 amps. Therefore, the parallel jumper cables should be at least 1/0 AWG or 2/0 AWG pure copper wire. Never use thin automotive jumper cables for permanent battery banks.

Can I wire batteries in series and parallel at the same time?

Yes, this is called a series-parallel configuration and is very common in large off-grid systems. For example, if you have four 12V 100Ah batteries, you can wire two pairs in series (creating two 24V 100Ah strings). You then wire those two 24V strings together in parallel. The final result is a 24V 200Ah battery bank. This allows you to increase both the system voltage and the total capacity simultaneously.
