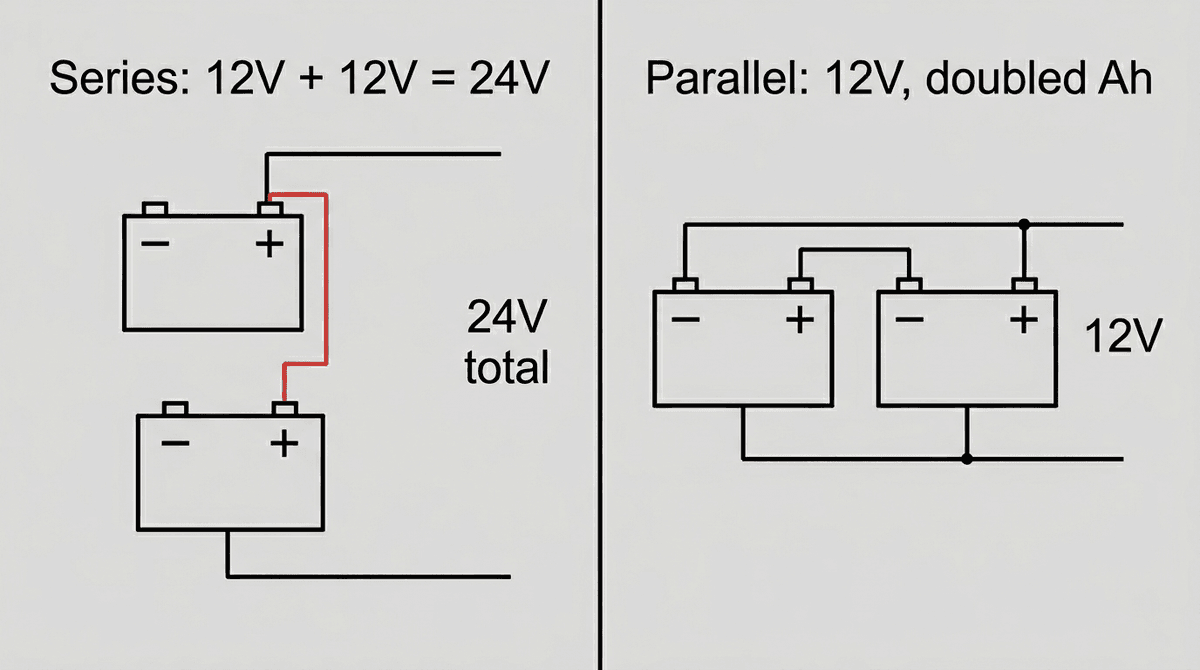

To wire 12V batteries in series, connect the positive (+) terminal of the first battery to the negative (-) terminal of the second battery using a heavy-duty jumper cable. This configuration adds the voltages together (e.g., two 12V batteries become 24V) while the amp-hour (Ah) capacity remains exactly the same as a single battery.
Wiring batteries in series is the fundamental building block for upgrading an off-grid solar system from a basic 12V setup to a more efficient 24V or 48V architecture. Higher voltage systems allow you to use thinner, less expensive wiring, reduce voltage drop over long cable runs, and utilize larger solar charge controllers. This guide explains the exact steps, safety protocols, and crucial balancing requirements for a successful series battery bank.
The Core Concept: Voltage Increases, Capacity Stays the Same
When you wire batteries in series, you are creating a single, larger battery pack with a higher electrical "pressure" (voltage).
- Voltage (V) Adds Up: Connecting two 12V batteries in series creates a 24V system. Connecting four 12V batteries in series creates a 48V system.
- Capacity (Ah) Remains Constant: If you connect two 100Ah 12V batteries in series, the resulting 24V bank still has a capacity of 100Ah.
- Total Energy (Wh) Increases: Because Watt-hours = Voltage × Amp-hours, your total stored energy doubles. (e.g., 12V × 100Ah = 1,200Wh. 24V × 100Ah = 2,400Wh).
Beyond the Basics: Crucial Steps Often Overlooked
Many basic wiring diagrams simply show a line connecting a positive post to a negative post. However, in real-world solar applications, failing to address the following factors can destroy an expensive battery bank in months.
Pre-Balancing Before Connection: You cannot simply take two 12V batteries out of the box and wire them in series. Even if they are the exact same brand and model, their state of charge (SOC) will differ slightly. If you connect a battery sitting at 12.8V in series with one at 12.2V, the charge controller will see a combined 25.0V. It will stop charging when the total reaches 28.8V, meaning the first battery might be dangerously overcharged at 15.5V while the second is chronically undercharged at 13.3V. You must charge each 12V battery individually to 100% full before wiring them in series.
Identical Battery Matching: Never mix battery ages, brands, capacities, or chemistries in a series string. If you wire a 3-year-old 100Ah AGM battery in series with a brand-new 100Ah AGM battery, the older battery's higher internal resistance will cause it to charge and discharge at a different rate. The new battery will be forced to compensate, drastically shortening its lifespan.
The Role of Battery Balancers (Equalizers): Even perfectly matched, pre-balanced batteries will slowly drift out of sync over dozens of charge/discharge cycles. In a 24V or 48V series string, a dedicated battery active balancer (or equalizer) monitors the voltage of each individual 12V block. If one battery drifts higher than the others during charging, the balancer shuttles that excess current to the lower-voltage batteries, keeping the entire string perfectly matched.
Step-by-Step Series Wiring Instructions
- Safety First: Wear insulated gloves and safety glasses. Remove all metal jewelry. Ensure your solar charge controller and inverter are completely disconnected.
- Pre-Charge: Individually charge every 12V battery to 100% using a standalone 12V AC charger. Verify with a multimeter that they are resting at the exact same voltage (within 0.05V of each other).
- Positioning: Place the batteries side-by-side in a well-ventilated, temperature-controlled area. Keep the distance between terminals as short as possible.
- The Series Jumper: Take a heavy-duty battery cable (e.g., 2/0 AWG or 4/0 AWG, depending on your inverter size) and connect one end to the Positive (+) terminal of Battery A.
- The Connection: Connect the other end of that same cable to the Negative (-) terminal of Battery B. Ensure the connections are torqued to the manufacturer's specifications.
- System Connections: You now have one unused Negative (-) terminal on Battery A, and one unused Positive (+) terminal on Battery B. These are your main system terminals. Connect your main negative cable to Battery A, and your main positive cable (via a properly sized fuse) to Battery B.
Illustrative Worked Example: Upgrading to 24V
Note: The following calculation uses illustrative numbers to demonstrate series wiring math. Always check your specific battery specifications.
An off-grid cabin owner currently has a 12V system but wants to install a larger 3,000W inverter. At 12V, a 3,000W inverter would draw a massive 250 Amps, requiring incredibly thick, expensive 4/0 AWG copper wire. To reduce the amperage and wire size, the owner decides to upgrade to a 24V system by wiring two 12V 200Ah Lithium Iron Phosphate (LiFePO4) batteries in series.
1. Initial State:
- Battery 1: 12.8V, 200Ah (2,560 Wh)
- Battery 2: 12.8V, 200Ah (2,560 Wh)
2. The Series Connection: The owner connects the positive terminal of Battery 1 to the negative terminal of Battery 2.
3. The Resulting Bank:
- New System Voltage: 12.8V + 12.8V = 25.6V nominal.
- New System Capacity: 200Ah (Capacity does not add in series).
- Total Stored Energy: 25.6V × 200Ah = 5,120 Wh.
4. The Benefit: Now, when the 3,000W inverter runs at full capacity, it only draws 125 Amps (3,000W / 24V) instead of 250 Amps. The owner can safely use much cheaper, easier-to-bend 2 AWG wire between the battery bank and the inverter.
Frequently Asked Questions
Can I wire a 100Ah battery and a 50Ah battery in series? Absolutely not. In a series circuit, the exact same current flows through all components. The 50Ah battery will be completely drained while the 100Ah battery is still half full. If the system continues to draw power, the 50Ah battery will be driven into a state of deep over-discharge and permanently destroyed.
Do I need a different charge controller for a series battery bank? Yes, you must use a charge controller capable of outputting the new, higher voltage. Most modern MPPT (Maximum Power Point Tracking) charge controllers automatically detect whether they are connected to a 12V, 24V, or 48V battery bank and adjust their charging profile accordingly. However, always verify your specific controller's manual before connecting it to a higher voltage bank.
How many 12V batteries can I wire in series? Most off-grid inverters max out at 48V nominal, which requires four 12V batteries in series. While you physically can wire more (e.g., eight 12V batteries for 96V), finding standard off-grid solar equipment designed for voltages above 48V is difficult and expensive. Furthermore, DC voltages above 48V to 60V are generally considered high-voltage and present a severe, lethal shock hazard.
If one battery in my series string dies, can I just replace that one? No. If a battery fails in a series string after a year of use, you must replace the entire string. If you drop a brand-new battery into a string of older, degraded batteries, the internal resistance mismatch will cause the new battery to be chronically undercharged and overworked, ruining it very quickly.
Can I tap into just one of the 12V batteries in a 24V series string to run a 12V radio? Never do this. Tapping a 12V load off a single battery in a 24V series string creates a severe imbalance. That specific battery will discharge faster than the others. When the solar panels recharge the 24V bank, the tapped battery will remain undercharged, while the untapped battery will be severely overcharged. If you need 12V power from a 24V bank, you must use a 24V-to-12V DC-DC step-down converter connected to the main 24V terminals.
